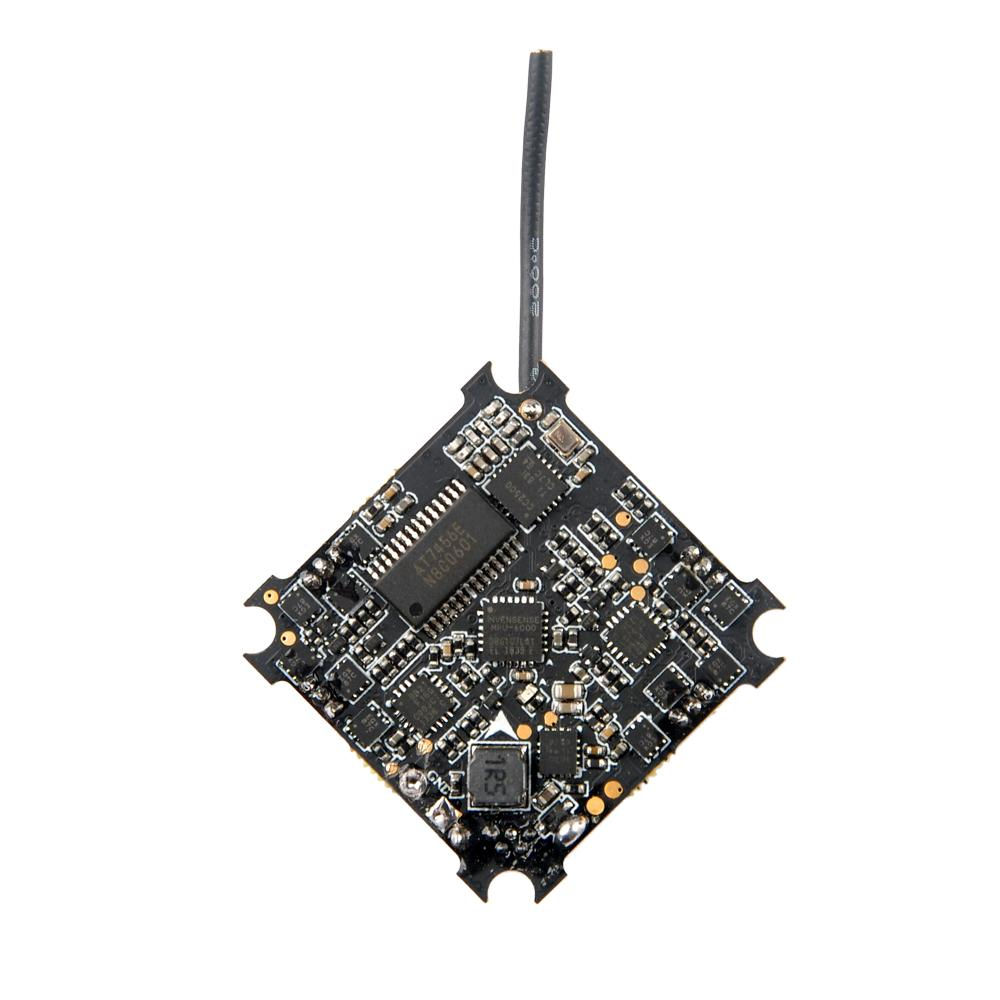

CRAZYBEE F4 PRO V2.0 1-3s
  • CRAZYBEE F4 PRO V2.0 1-3s

    Flight controller    MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
    Sensor: MPU-6000(SPI connection)
    Board size: 28.5 * 28.5MM
    Power supply: 1-3S battery input (DC 3.5-13V)
    Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
    ESC MCU Upgraded to EFM8BB21
    Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
    Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS-2A Compatible)
    DSMX version Built-in Serial-based DSM2/DSMX compatible satellite receiver(Default RX2 was used for DSM2/DSMX receiver)
    No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS and Dsm2/DSMX, Ibus protocol etc.
    Built-in Betaflight OSD (SPI Control)
    Built-in Current meter sensor Max up to 28A
    Current meter scale set to 1175
    Built-in 5V 1A Buck / Boost with LC filter
    Built-in voltage detection
    BLHELI_S pass-through Ready
    Multi Serial port support
    Fully compatible with almost Brushless whoop drone
    Weight:4.3g
    Onboard 4in1 ESC    MCU upgraded to EFM8BB21
    Power supply: 1-3S LiPo/LiPo HV (3.5v/13v)
    Current: 5A continuous peak 6A (3 seconds)
    Support BLHeliSuite programmable
    Factory firmware: S_H_50_REV16_7.Hex
    Default protocol: DSHOT600
    Receiver support    No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS and Dsm2/DSMX, Ibus protocol etc.

      CHF 47.30Preis
